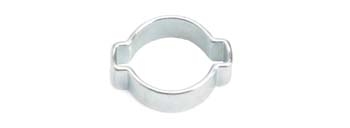

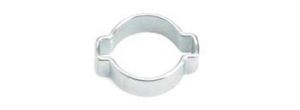

hadicová spona dvououšková 14-17mm,zamačkávací hadicová spona 2x ouško,stiskávací hadicová spona 14-17mm spona Oetier
pozink rozsah 14-17mm
značková origo spona kvalita a notma zaručena
PG 101 Steel, Material no. 1.0338/SAE 1008/1010, zinc-plated
PG 151 Stainless Steel, Material no. 1.4307/UNS S30403
Corrosion resistance according to DIN EN ISO 9227
PG 101 ≥ 96 h
PG 151 ≥ 800 h
Size range
4.1 – 46.0 mm
Some sizes are only available if an appropriate minimum
quantity is ordered.

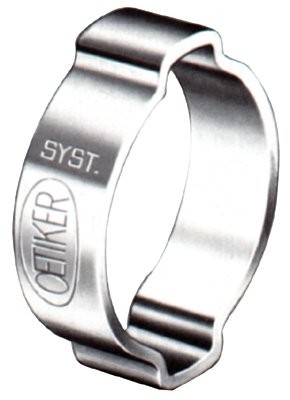

Oetiker 2-Ear Clamps
The ears of these clamps do not have a dimple and nearly double
the clamping range, compared to the 1-ear clamp. 2 ears provide
a degree of elasticity to accommodate changes in size of the
parts being joined, such as that which may be caused by thermal
expansion or vibration.
Installation techniques are similar to those for 1-Ear Clamps, but
the force applied when closing the second ear may react against
the opposing closed ear and make a second crimping operation
necessary. For perfect sealing, the ears must be adequately
closed during installation.
Assembly recommendations
The ears of these clamps should be closed with the recommended,
uniform force (known as force priority). This method will result in
a constant, reproducible stress within the clamp material, without
overloading either the clamp or the parts being assembled. The
nominal diameter of the clamp should always be chosen so that,
when installed with the correct clamping force, the ears are
almost closed. Complete process monitoring and 100% process
documentation are available using the “Electronically Controlled
Pneumatic Power Tool” Oetiker ELK.
Closing force
The following table shows the maximum applied closing force for
different material dimensions.
Important
Single tool stroke closure only, do not apply secondary
crimping force.
